#include <optimization_unit_general.hpp>

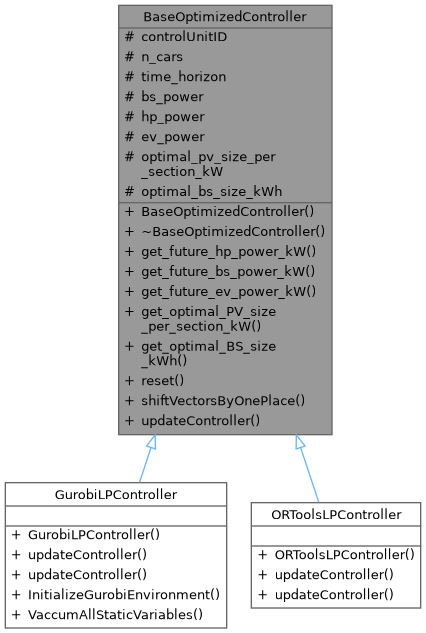

Inheritance diagram for BaseOptimizedController:

Public Member Functions
	BaseOptimizedController (unsigned long cuID, unsigned int time_horizon, unsigned long n_cars)

virtual	~BaseOptimizedController ()=default

const std::vector< double > &	get_future_hp_power_kW ()

const std::vector< double > &	get_future_bs_power_kW ()

const std::vector< std::vector< double > > &	get_future_ev_power_kW ()

const std::list< double > &	get_optimal_PV_size_per_section_kW ()

double	get_optimal_BS_size_kWh ()

void	reset (unsigned int new_horizon)

void	shiftVectorsByOnePlace ()

virtual bool	updateController (const unsigned long ts, double max_p_bs_kW, double max_e_bs_kWh, double max_p_cs_kW, double current_bs_charge_kWh, const std::vector< float > &future_resid_demand_kW, const std::vector< double > &future_pv_generation_kW, const std::vector< double > &future_hp_shiftable_maxP, const std::vector< double > &future_hp_shiftable_minP, const std::vector< double > &future_hp_shiftable_maxE, const std::vector< double > &future_hp_shiftable_minE, const std::vector< const std::vector< double > * > future_ev_shiftable_maxE, const std::vector< const std::vector< double > > future_ev_shiftable_minE, const std::vector< const std::vector< double > > future_ev_maxP, const bool optimize_PV_size, const bool optimize_BS_size, const std::list< std::vector< double > > total_PV_generation_per_section_kW, const std::list< double > *max_PV_power_per_section_kWp)=0
	Executes the controller with all (future) states in the current horizon and stores the results the member variables BaseOptimizedController::bs_power, BaseOptimizedController::hp_power and BaseOptimizedController::ev_power.

Protected Attributes
const unsigned long	controlUnitID
	ID of the connected control unit.

const unsigned long	n_cars
	Number of EVs with the given control unit as home place.

unsigned long	time_horizon

std::vector< double >	bs_power
	The battery storage power for every time step in the time horizon.

std::vector< double >	hp_power
	The heat pump power for every time step in the time horizon.

std::vector< std::vector< double > >	ev_power
	The charging power per EV (index 0) for every time step (index 1) in the time horizon.

std::list< double >	optimal_pv_size_per_section_kW
	If the PV size should be optimized, this value contains the optimal PV size per section in kW.

double	optimal_bs_size_kWh
	If the BS size should be optimized, this value contains the optimal BS size in kWh.

Detailed Description

optimization_unit_general.hpp

This file contains all general classes / structs required by the optimization implementations. This class represents the base class for an optimized (i.e., not rule-based) controller.

Constructor & Destructor Documentation

◆ BaseOptimizedController()

BaseOptimizedController::BaseOptimizedController	(	unsigned long	cuID,
		unsigned int	time_horizon,
		unsigned long	n_cars
	)

inline

Constructs a new object with 0.0-initialized vectors with length of parameter time_horizon

◆ ~BaseOptimizedController()

virtual BaseOptimizedController::~BaseOptimizedController ( )

virtualdefault

Member Function Documentation

◆ get_future_bs_power_kW()

const std::vector< double > & BaseOptimizedController::get_future_bs_power_kW ( )

inline

Returns the optimized control for the battery storage for the next time steps in the time_horizon Attention: The returned object will be overwritten in future calls!

◆ get_future_ev_power_kW()

const std::vector< std::vector< double > > & BaseOptimizedController::get_future_ev_power_kW ( )

inline

Returns the optimized control for every EV for the next time steps in the time_horizon Attention: The returned object will be overwritten in future calls!

◆ get_future_hp_power_kW()

const std::vector< double > & BaseOptimizedController::get_future_hp_power_kW ( )

inline

Returns the optimized control for the heat pump for the next time steps in the time_horizon Attention: The returned object will be overwritten in future calls!

◆ get_optimal_BS_size_kWh()

double BaseOptimizedController::get_optimal_BS_size_kWh ( )

inline

Returns the optimal BS size in kWh if the BS size was also part of the optimization

◆ get_optimal_PV_size_per_section_kW()

const std::list< double > & BaseOptimizedController::get_optimal_PV_size_per_section_kW ( )

inline

Returns the optimal BS size in kWh if the BS size was also part of the optimization

◆ reset()

void BaseOptimizedController::reset ( unsigned int new_horizon )

inline

Resets the vectors with 0.0-initialized values with length of parameter (new) parameter time_horizon

◆ shiftVectorsByOnePlace()

void BaseOptimizedController::shiftVectorsByOnePlace ( )

inline

Removes the first element, shifts the second one to the first place and so on and adds a 0.0 at the last place.

◆ updateController()

virtual bool BaseOptimizedController::updateController	(	const unsigned long	ts,
		double	max_p_bs_kW,
		double	max_e_bs_kWh,
		double	max_p_cs_kW,
		double	current_bs_charge_kWh,
		const std::vector< float > &	future_resid_demand_kW,
		const std::vector< double > &	future_pv_generation_kW,
		const std::vector< double > &	future_hp_shiftable_maxP,
		const std::vector< double > &	future_hp_shiftable_minP,
		const std::vector< double > &	future_hp_shiftable_maxE,
		const std::vector< double > &	future_hp_shiftable_minE,
		const std::vector< const std::vector< double > * > *	future_ev_shiftable_maxE,
		const std::vector< const std::vector< double > * > *	future_ev_shiftable_minE,
		const std::vector< const std::vector< double > * > *	future_ev_maxP,
		const bool	optimize_PV_size,
		const bool	optimize_BS_size,
		const std::list< std::vector< double > > *	total_PV_generation_per_section_kW,
		const std::list< double > *	max_PV_power_per_section_kWp
	)

pure virtual

Executes the controller with all (future) states in the current horizon and stores the results the member variables BaseOptimizedController::bs_power, BaseOptimizedController::hp_power and BaseOptimizedController::ev_power.

If parameter optimize_PV_size is set to true, the value of the parameter future_pv_generation_kW is ignored, and parameters total_PV_generation_per_section_kW and must be a valid reference. Otherwise, the last two parameters are ignored. If parameter optimize_BS_size is set to true, the value of max_e_bs_kWh and max_p_cs_kW are ignored. They are a result of the optimization. Moreover, in this case, current_bs_charge_kWh must be set to 0.0.

Parameters

ts	The current time step ID
max_p_bs_kW	Maximum battery power in kW
max_e_bs_kWh	Battery capacity in kWh
max_p_cs_kW	Maximum charging station power in kW
current_bs_charge_kWh	Current charge of the battery in kWh
future_resid_demand_kW	Vector with future residential energy demand in kW per time step in the horizon
future_pv_generation_kW	Vector with future PV generation power in kW per time step in the horizon
future_hp_shiftable_maxP	Vector with maximum power of the heat pump per time step
future_hp_shiftable_minP	Vector with minimum power of the heat pump per time step
future_hp_shiftable_maxE	Vector with maximum accumulated energy consumption of the heat pump in kWh until the end of each time step in the horizon
future_hp_shiftable_minE	Vector with minimum accumulated energy consumption of the heat pump in kWh until the end of each time step in the horizon
future_ev_shiftable_maxE	Vector with maximum accumulated energy consumption of the charging station in kWh for every step over the considered horizon (first index) and every EV (second index)
future_ev_shiftable_minE	Vector with minimum accumulated energy consumption of the charging station in kWh for every step over the considered horizon (first index) and every EV (second index)
future_ev_maxP	Vector with maximum charging power per EV in kW for every step over the considered horizon (first index) and every EV (second index)
optimize_PV_size	Flag indicating if the PV size (per section) should be part of the optimization
optimize_BS_size	Flag indicating if the BS size should be part of the optimization
total_PV_generation_per_section_kW	Total PV generation over the simulation horizon. Only required, if PV sizing (flag optimize_PV_size) is also a result of the optimization - otherwise, this parameter can be NULL
max_PV_power_per_section_kWp	The maximum installable power per roof section in kWp. Only required, if PV sizing (flag optimize_PV_size) is also a result of the optimization - otherwise, this parameter can be NULL

Returns: : Returns a boolean value, with true indicating if the optimization succeded, or false indicating an error (e.g., an unfeasable problem)

Implemented in GurobiLPController, ORToolsLPController, GurobiLPController, and ORToolsLPController.

Member Data Documentation

◆ bs_power

std::vector<double> BaseOptimizedController::bs_power

protected

The battery storage power for every time step in the time horizon.

◆ controlUnitID

const unsigned long BaseOptimizedController::controlUnitID

protected

ID of the connected control unit.

◆ ev_power

std::vector<std::vector<double> > BaseOptimizedController::ev_power

protected

The charging power per EV (index 0) for every time step (index 1) in the time horizon.

◆ hp_power

std::vector<double> BaseOptimizedController::hp_power

protected

The heat pump power for every time step in the time horizon.

◆ n_cars

const unsigned long BaseOptimizedController::n_cars

protected

Number of EVs with the given control unit as home place.

◆ optimal_bs_size_kWh

double BaseOptimizedController::optimal_bs_size_kWh

protected

If the BS size should be optimized, this value contains the optimal BS size in kWh.

◆ optimal_pv_size_per_section_kW

std::list<double> BaseOptimizedController::optimal_pv_size_per_section_kW

protected

If the PV size should be optimized, this value contains the optimal PV size per section in kW.

◆ time_horizon

unsigned long BaseOptimizedController::time_horizon

protected

The documentation for this class was generated from the following file:

optimization_unit_general.hpp
