#include <output.h>

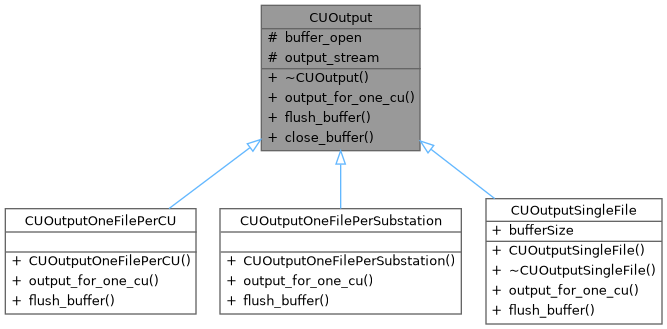

Inheritance diagram for CUOutput:

Public Member Functions
virtual	~CUOutput ()

virtual void	output_for_one_cu (size_t cuID, size_t ts, double load_vsm, double load_rsm, double load_selfprod, double load_pv, double bs_SOC, double load_bs, double load_hp, double load_cs, size_t n_cars_pc, size_t n_cars_pnc)=0

virtual void	flush_buffer ()=0

void	close_buffer ()

Protected Attributes
bool	buffer_open
	True, if buffer(s) is/are opened.

std::ofstream *	output_stream
	output stream

Detailed Description

This (virtual) class represents the output for one (or more) control units. This is an abstract class, as most methods are 'implemented' as pure virtual functions here.

Constructor & Destructor Documentation

◆ ~CUOutput()

CUOutput::~CUOutput ( )

virtual

Member Function Documentation

◆ close_buffer()

void CUOutput::close_buffer ( )

◆ flush_buffer()

virtual void CUOutput::flush_buffer ( )

pure virtual

Implemented in CUOutputSingleFile, CUOutputOneFilePerCU, and CUOutputOneFilePerSubstation.

◆ output_for_one_cu()

virtual void CUOutput::output_for_one_cu	(	size_t	cuID,
		size_t	ts,
		double	load_vsm,
		double	load_rsm,
		double	load_selfprod,
		double	load_pv,
		double	bs_SOC,
		double	load_bs,
		double	load_hp,
		double	load_cs,
		size_t	n_cars_pc,
		size_t	n_cars_pnc
	)

pure virtual

Implemented in CUOutputSingleFile, CUOutputOneFilePerCU, and CUOutputOneFilePerSubstation.

Member Data Documentation

◆ buffer_open

bool CUOutput::buffer_open

protected

True, if buffer(s) is/are opened.

◆ output_stream

std::ofstream* CUOutput::output_stream
