#include <units.h>

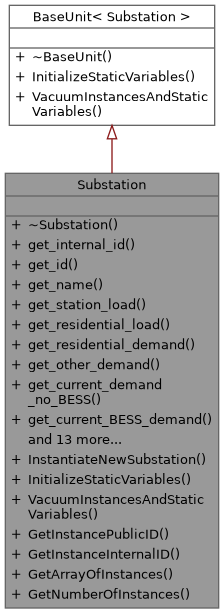

Inheritance diagram for Substation:

Public Member Functions
	~Substation ()

unsigned long	get_internal_id () const
	Returns the internal ID of the substation.

unsigned long	get_id () const
	Returns the ID of the substation as defined in the system structure database.

const std::string *	get_name () const
	Returns the name of the substation.

double	get_station_load () const
	Returns the current load at the substation in kW.

double	get_residential_load () const
	Returns the current load at the substation in kW, generated by residential control units only.

double	get_residential_demand () const
	Returns the accumulated demand (i.e., only the positive virtual smart meter readings) of all residential control units at this substation in kW.

double	get_other_demand () const
	Returns the accumulated demand (i.e., only the positive virtual smart meter readings) of all non-residential control units at this substation in kW.

double	get_current_demand_no_BESS () const
	Returns the current demand of all connected units without considering the local generation OR the BESS

double	get_current_BESS_demand () const
	Returns the current charging demand of all BESS in all connected units.

double	get_current_PV_generation_total_kW () const
	Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected PV installations.

double	get_current_BS_generation_total_kW () const
	Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected battery storage systems.

double	get_current_CHP_generation_total_kW () const
	Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected CHPs.

double	get_current_wind_generation_total_kW () const
	Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected wind turbines.

double	get_current_unknown_generation_total_kW () const
	Returns the current generation (without consideration of self-consumption) in kW that is generated by unknown components or not attributable to any generation technology.

double	get_current_PV_feedin_to_grid_kW () const
	Returns the current feed-in into the grid in kW that is generated by all connected PV installations.

double	get_current_BS_feedin_to_grid_kW () const
	Returns the current feed-in into the grid in kW that is generated by all connected battery storage systems.

double	get_current_CHP_feedin_to_grid_kW () const
	Returns the current feed-in into the grid in kW that is generated by all connected CHPs.

double	get_current_wind_feedin_to_grid_kW () const
	Returns the current feed-in into the grid in kW that is generated by all connected wind turbines.

double	get_current_unknown_feedin_to_grid_kW () const
	Returns the current feed-in into the grid in kW that is generated by unknown components or not attributable to any generation technology.

void	add_unit (ControlUnit *unit)

void	calc_load ()

const std::list< ControlUnit * > *	get_connected_units ()
	Return the list of connected units (as read only list)

Static Public Member Functions
static bool	InstantiateNewSubstation (unsigned long public_id, std::string *name)

static void	InitializeStaticVariables (unsigned long n_substations)

static void	VacuumInstancesAndStaticVariables ()

static Substation *	GetInstancePublicID (unsigned long public_id)
	Returns the instance with a given public_id.

static Substation *	GetInstanceInternalID (unsigned long internal_id)
	Returns the instance with a given public_id.

static const std::vector< Substation * > &	GetArrayOfInstances ()
	Returns the std::vector of all substation instances. The objects itself are mutable, but the vector is const.

static size_t	GetNumberOfInstances ()

Detailed Description

This class represents a substation. One or more control units are connected to one instance of this class.

Constructor & Destructor Documentation

◆ ~Substation()

Substation::~Substation ( )

Member Function Documentation

◆ add_unit()

void Substation::add_unit ( ControlUnit * unit )

◆ calc_load()

void Substation::calc_load ( )

◆ get_connected_units()

const std::list< ControlUnit * > * Substation::get_connected_units ( )

inline

Return the list of connected units (as read only list)

◆ get_current_BESS_demand()

double Substation::get_current_BESS_demand ( ) const

inline

Returns the current charging demand of all BESS in all connected units.

◆ get_current_BS_feedin_to_grid_kW()

double Substation::get_current_BS_feedin_to_grid_kW ( ) const

inline

Returns the current feed-in into the grid in kW that is generated by all connected battery storage systems.

◆ get_current_BS_generation_total_kW()

double Substation::get_current_BS_generation_total_kW ( ) const

inline

Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected battery storage systems.

◆ get_current_CHP_feedin_to_grid_kW()

double Substation::get_current_CHP_feedin_to_grid_kW ( ) const

inline

Returns the current feed-in into the grid in kW that is generated by all connected CHPs.

◆ get_current_CHP_generation_total_kW()

double Substation::get_current_CHP_generation_total_kW ( ) const

inline

Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected CHPs.

◆ get_current_demand_no_BESS()

double Substation::get_current_demand_no_BESS ( ) const

inline

Returns the current demand of all connected units without considering the local generation OR the BESS

◆ get_current_PV_feedin_to_grid_kW()

double Substation::get_current_PV_feedin_to_grid_kW ( ) const

inline

Returns the current feed-in into the grid in kW that is generated by all connected PV installations.

◆ get_current_PV_generation_total_kW()

double Substation::get_current_PV_generation_total_kW ( ) const

inline

Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected PV installations.

◆ get_current_unknown_feedin_to_grid_kW()

double Substation::get_current_unknown_feedin_to_grid_kW ( ) const

inline

Returns the current feed-in into the grid in kW that is generated by unknown components or not attributable to any generation technology.

◆ get_current_unknown_generation_total_kW()

double Substation::get_current_unknown_generation_total_kW ( ) const

inline

Returns the current generation (without consideration of self-consumption) in kW that is generated by unknown components or not attributable to any generation technology.

◆ get_current_wind_feedin_to_grid_kW()

double Substation::get_current_wind_feedin_to_grid_kW ( ) const

inline

Returns the current feed-in into the grid in kW that is generated by all connected wind turbines.

◆ get_current_wind_generation_total_kW()

double Substation::get_current_wind_generation_total_kW ( ) const

inline

Returns the current generation (without consideration of self-consumption) in kW that is generated by all connected wind turbines.

◆ get_id()

unsigned long Substation::get_id ( ) const

inline

Returns the ID of the substation as defined in the system structure database.

◆ get_internal_id()

unsigned long Substation::get_internal_id ( ) const

inline

Returns the internal ID of the substation.

◆ get_name()

const std::string * Substation::get_name ( ) const

inline

Returns the name of the substation.

◆ get_other_demand()

double Substation::get_other_demand ( ) const

inline

Returns the accumulated demand (i.e., only the positive virtual smart meter readings) of all non-residential control units at this substation in kW.

◆ get_residential_demand()

double Substation::get_residential_demand ( ) const

inline

Returns the accumulated demand (i.e., only the positive virtual smart meter readings) of all residential control units at this substation in kW.

◆ get_residential_load()

double Substation::get_residential_load ( ) const

inline

Returns the current load at the substation in kW, generated by residential control units only.

◆ get_station_load()

double Substation::get_station_load ( ) const

inline

Returns the current load at the substation in kW.

◆ GetArrayOfInstances()

static const std::vector< Substation * > & Substation::GetArrayOfInstances ( )

inlinestatic

Returns the std::vector of all substation instances. The objects itself are mutable, but the vector is const.

◆ GetInstanceInternalID()

static Substation * Substation::GetInstanceInternalID ( unsigned long internal_id )

inlinestatic

Returns the instance with a given public_id.

◆ GetInstancePublicID()

Substation * Substation::GetInstancePublicID ( unsigned long public_id )

static

Returns the instance with a given public_id.

◆ GetNumberOfInstances()

static size_t Substation::GetNumberOfInstances ( )

inlinestatic

◆ InitializeStaticVariables()

void Substation::InitializeStaticVariables ( unsigned long n_substations )

static

◆ InstantiateNewSubstation()

bool Substation::InstantiateNewSubstation	(	unsigned long	public_id,
		std::string *	name
	)

static

Instantiates a new substation object. Returns false, if the ID is already defined.

◆ VacuumInstancesAndStaticVariables()

void Substation::VacuumInstancesAndStaticVariables ( )

static

The documentation for this class was generated from the following files:
