#include <components.h>

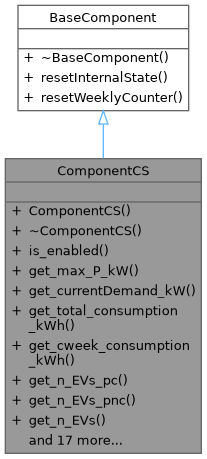

Inheritance diagram for ComponentCS:

Public Member Functions
	ComponentCS (ControlUnit *calling_control_unit, unsigned int number_of_flats)
	Constructs a new Charging Station component. There will be one charging point per flat.

	~ComponentCS ()

bool	is_enabled () const

double	get_max_P_kW () const
	Returns the maximum available charging power for this station in kW (regardless if this is currently available, as some EVs might already be fully charged or not available)

double	get_currentDemand_kW () const
	Returns the current power in kW for the current time step. Only valid after the call of set_charging_value(). This value might differ from the request set using set_charging_value().

double	get_total_consumption_kWh () const
	Returns the total consumed energy in kWh after the current time step. Only valid after the call of set_charging_value()

double	get_cweek_consumption_kWh () const
	Returns the total consumed energy in kWh after the current time step. Only valid after the call of set_charging_value()

unsigned long	get_n_EVs_pc () const
	Returns the number of EVs that are currently at home AND connected with the station.

unsigned long	get_n_EVs_pnc () const
	Returns the number of EVs that are currently at home AND NOT connected with the station.

unsigned long	get_n_EVs () const
	Returns the number of connected EVs if the component is enabled, otherwise 0 is returned.

unsigned long	get_possible_n_EVs () const
	Returns the number of possible connected EVs if the component would be enabled.

unsigned long	get_control_unit_id () const
	Returns the control unit ID of the installation place.

std::vector< const EVFSM * >	get_listOfEVs () const
	Returns a reference to the internal list of EVs.

unsigned long	get_n_chargers () const
	Returns the number of chargers available at this charging station (typically the number of flats of the building)

const std::vector< const std::vector< double > * > *	get_future_max_consumption_kWh () const

const std::vector< const std::vector< double > * > *	get_future_min_consumption_kWh () const

const std::vector< const std::vector< double > * > *	get_future_max_power_kW () const

void	enable_station ()

void	disable_station ()

void	resetWeeklyCounter ()
	Resets the internal, weekly counters.

void	resetInternalState ()
	Resets the internal simulation state (like counters), but retains the structural state like attached sub-components.

void	add_ev (unsigned long carID)

void	set_horizon_in_ts (unsigned int new_horizon)
	Sets another horizon for the number of time steps returned by ComponentCS::get_future_min_consumption_kWh() and ComponentCS::get_future_max_consumption_kWh()

void	preprocess_ev_data ()
	Preprocesses EV data, calls EVFSM::preprocessTourInformation() for all attached EVs. Call this method only once right before the first simulation run.

void	setCarStatesForTimeStep (unsigned long ts)
	Sets the car states for all attached EVs for a new time step 'ts'. This method must be called with strictly consecutive values of parameter 'ts'.

void	setDemandToProfileData (unsigned long ts)
	Sets the charging demand to the (immediate charging) profile value. If this method is called once during a simulation run, ComponentCS::setDemandToGivenValues() MUST NOT be called afterwards.

bool	setDemandToGivenValues (std::vector< double > &charging_power_per_EV_kW)
	Sets the charging demand (in kW) per EV as given by any contoller. If this method is called once during a simulation run, ComponentCS::setDemandToProfileData() MUST NOT be called afterwards. Returns true if no error occured for all connected EVs or false otherwise.

Public Member Functions inherited from BaseComponent
virtual	~BaseComponent ()

Detailed Description

This class represents a charging station. Every control unit holds a charging station by default, which is disabled. Enabling a station in the simulation represents to build such a station in the reality.

Constructor & Destructor Documentation

◆ ComponentCS()

ComponentCS::ComponentCS	(	ControlUnit *	calling_control_unit,
		unsigned int	number_of_flats
	)

Constructs a new Charging Station component. There will be one charging point per flat.

Parameters

calling_control_unit	Reference to the calling unit,
number_of_flats	The number of flats connected to the charging station

◆ ~ComponentCS()

ComponentCS::~ComponentCS ( )

Member Function Documentation

◆ add_ev()

void ComponentCS::add_ev ( unsigned long carID )

◆ disable_station()

void ComponentCS::disable_station ( )

◆ enable_station()

void ComponentCS::enable_station ( )

◆ get_control_unit_id()

unsigned long ComponentCS::get_control_unit_id ( ) const

Returns the control unit ID of the installation place.

◆ get_currentDemand_kW()

double ComponentCS::get_currentDemand_kW ( ) const

inline

Returns the current power in kW for the current time step. Only valid after the call of set_charging_value(). This value might differ from the request set using set_charging_value().

◆ get_cweek_consumption_kWh()

double ComponentCS::get_cweek_consumption_kWh ( ) const

inline

Returns the total consumed energy in kWh after the current time step. Only valid after the call of set_charging_value()

◆ get_future_max_consumption_kWh()

const std::vector< const std::vector< double > * > * ComponentCS::get_future_max_consumption_kWh ( ) const

inline

Returns the maximum electricity consumption of this component for the next n time steps (given some flexibility). This means that the value at position 0 returns the maximum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using ComponentCS::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per car (index 0) and per future time step (index 0) - READ THE ATTENTION NOTICE

◆ get_future_max_power_kW()

const std::vector< const std::vector< double > * > * ComponentCS::get_future_max_power_kW ( ) const

inline

Returns the maximum power per time step and EV for the future horizon. Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per car (index 0) and per future time step (index 0) - READ THE ATTENTION NOTICE

◆ get_future_min_consumption_kWh()

const std::vector< const std::vector< double > * > * ComponentCS::get_future_min_consumption_kWh ( ) const

inline

Returns the minimum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the minimum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using ComponentCS::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per car (index 0) and per future time step (index 0) - READ THE ATTENTION NOTICE

◆ get_listOfEVs()

std::vector< const EVFSM * > ComponentCS::get_listOfEVs ( ) const

inline

Returns a reference to the internal list of EVs.

◆ get_max_P_kW()

double ComponentCS::get_max_P_kW ( ) const

Returns the maximum available charging power for this station in kW (regardless if this is currently available, as some EVs might already be fully charged or not available)

◆ get_n_chargers()

unsigned long ComponentCS::get_n_chargers ( ) const

inline

Returns the number of chargers available at this charging station (typically the number of flats of the building)

◆ get_n_EVs()

unsigned long ComponentCS::get_n_EVs ( ) const

Returns the number of connected EVs if the component is enabled, otherwise 0 is returned.

◆ get_n_EVs_pc()

unsigned long ComponentCS::get_n_EVs_pc ( ) const

Returns the number of EVs that are currently at home AND connected with the station.

◆ get_n_EVs_pnc()

unsigned long ComponentCS::get_n_EVs_pnc ( ) const

Returns the number of EVs that are currently at home AND NOT connected with the station.

◆ get_possible_n_EVs()

unsigned long ComponentCS::get_possible_n_EVs ( ) const

Returns the number of possible connected EVs if the component would be enabled.

◆ get_total_consumption_kWh()

double ComponentCS::get_total_consumption_kWh ( ) const

inline

Returns the total consumed energy in kWh after the current time step. Only valid after the call of set_charging_value()

◆ is_enabled()

bool ComponentCS::is_enabled ( ) const

inline

◆ preprocess_ev_data()

void ComponentCS::preprocess_ev_data ( )

Preprocesses EV data, calls EVFSM::preprocessTourInformation() for all attached EVs. Call this method only once right before the first simulation run.

◆ resetInternalState()

void ComponentCS::resetInternalState ( )

virtual

Resets the internal simulation state (like counters), but retains the structural state like attached sub-components.

Implements BaseComponent.

◆ resetWeeklyCounter()

void ComponentCS::resetWeeklyCounter ( )

virtual

Resets the internal, weekly counters.

Implements BaseComponent.

◆ set_horizon_in_ts()

void ComponentCS::set_horizon_in_ts ( unsigned int new_horizon )

Sets another horizon for the number of time steps returned by ComponentCS::get_future_min_consumption_kWh() and ComponentCS::get_future_max_consumption_kWh()

◆ setCarStatesForTimeStep()

void ComponentCS::setCarStatesForTimeStep ( unsigned long ts )

Sets the car states for all attached EVs for a new time step 'ts'. This method must be called with strictly consecutive values of parameter 'ts'.

◆ setDemandToGivenValues()

bool ComponentCS::setDemandToGivenValues ( std::vector< double > & charging_power_per_EV_kW )

Sets the charging demand (in kW) per EV as given by any contoller. If this method is called once during a simulation run, ComponentCS::setDemandToProfileData() MUST NOT be called afterwards. Returns true if no error occured for all connected EVs or false otherwise.

◆ setDemandToProfileData()

void ComponentCS::setDemandToProfileData ( unsigned long ts )

Sets the charging demand to the (immediate charging) profile value. If this method is called once during a simulation run, ComponentCS::setDemandToGivenValues() MUST NOT be called afterwards.

The documentation for this class was generated from the following files:
