#include <components.h>

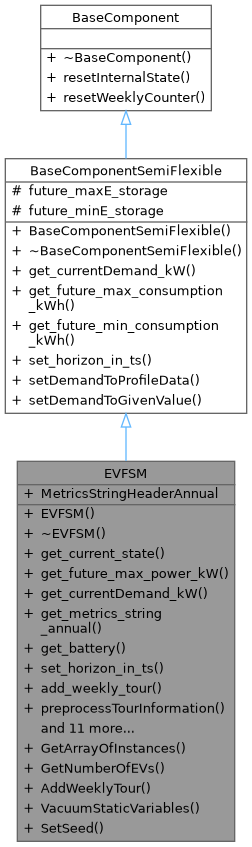

Inheritance diagram for EVFSM:

Public Member Functions
	EVFSM (unsigned long carID, ComponentCS *homeStation)

	~EVFSM ()

EVState	get_current_state () const

const std::vector< double > *	get_future_max_power_kW () const
	Returns the maximum power of this EV per time step in the controller horizon. Attention: Returned object will be overwritten after calling EVFSM::setCarStateForTimeStep().

double	get_currentDemand_kW () const
	Gets the current charging power in kW; Only valid after calling EVFSM::setDemandToProfileData() or EVFSM::setDemandToGivenValue()

std::string *	get_metrics_string_annual ()
	Returns some metrics as string (useful for the output). Header see EVFSM::MetricsStringHeaderAnnual. Call this function only if simulation run is finished!

const ComponentBS *	get_battery () const
	Returns a reference to the battery component of the EV.

void	set_horizon_in_ts (unsigned int new_horizon)

void	add_weekly_tour (short weekday, unsigned long departure_ts_of_day, unsigned long ts_duration, double tour_length_km, bool with_work)
	This method adds a home-centered car tour to the current car. All parameters that represent a time must have the same alignment as the global time information.

void	preprocessTourInformation ()
	Transforms the list of weekly tours into a list of tours for the complete simulation time span and computes upper and lower cumlulative energy required (i.e., fill variables BaseComponentSemiFlexible::future_maxE_storage and BaseComponentSemiFlexible::future_minE_storage from upper class). THis method MUST be called before the main simulation run starts, but it MUST be called after EVFSM::add_weekly_tour() is called for the last time, i.e., all tours have been added.

void	resetInternalState ()
	Resets the internal state.

void	setCarStateForTimeStep (unsigned long ts)
	Sets the car state for a new time step 'ts'. This method must be called with strictly consecutive values of parameter 'ts'. It uses the precomputed vectors for internal processing.

void	setDemandToProfileData (unsigned long ts)

bool	setDemandToGivenValue (double new_demand_kW)

void	resetWeeklyCounter ()
	Do nothing. The EV has no weekly metrics.

const std::vector< double > *	get_future_max_consumption_kWh () const

const std::vector< double > *	get_future_min_consumption_kWh () const

virtual double	get_currentDemand_kW () const=0

void	set_horizon_in_ts (unsigned int new_horizon)

virtual void	setDemandToProfileData (unsigned long ts)=0

virtual bool	setDemandToGivenValue (double new_demand_kW)=0

Public Member Functions inherited from BaseComponentSemiFlexible
	BaseComponentSemiFlexible ()

	~BaseComponentSemiFlexible ()

const std::vector< double > *	get_future_max_consumption_kWh () const

const std::vector< double > *	get_future_min_consumption_kWh () const

void	set_horizon_in_ts (unsigned int new_horizon)

Public Member Functions inherited from BaseComponent
virtual	~BaseComponent ()

Static Public Member Functions
static const std::map< unsigned long, EVFSM * > &	GetArrayOfInstances ()
	Returns the map of all existing instances. The objects itself are mutable, but the map reference is const.

static unsigned long	GetNumberOfEVs ()

static void	AddWeeklyTour (unsigned long carID, short weekday, unsigned long departure_ts_of_day, unsigned long ts_duration, double tour_length_km, bool with_work)
	This class method adds a home-centered car tour to the car with ID carID. All parameters that represent a time must have the same alignment as the global time information.

static void	VacuumStaticVariables ()

static void	SetSeed (unsigned int seed)
	Sets the seed for the EVFSM-class random number generator.

Static Public Attributes
static const std::string	MetricsStringHeaderAnnual = "CarID,HomeControlUnitID,Driving distance [km],E used for driving [kWh],Home-charged E [kWh],Home-discharged E [kWh],n ts home-connected"
	The header for the output string produced by `EVFSM::get_metrics_string_annual()`

Additional Inherited Members
Protected Attributes inherited from BaseComponentSemiFlexible
std::vector< double >	future_maxE_storage

std::vector< double >	future_minE_storage

Detailed Description

This class represents a EV (electric vehicle) modeled as a finite-state machine.

It is a finite-state machine with the states:

charging at home
at home (bu not charging)
driving (i.e., away from home)
charging somewhere on the way

Moreover, it has a battery component (the same as it is used for simulating the residential batteries).

Finally, it holds an attached driving profile.

Constructor & Destructor Documentation

◆ EVFSM()

EVFSM::EVFSM	(	unsigned long	carID,
		ComponentCS *	homeStation
	)

◆ ~EVFSM()

EVFSM::~EVFSM ( )

Member Function Documentation

◆ add_weekly_tour()

void EVFSM::add_weekly_tour	(	short	weekday,
		unsigned long	departure_ts_of_day,
		unsigned long	ts_duration,
		double	tour_length_km,
		bool	with_work
	)

This method adds a home-centered car tour to the current car. All parameters that represent a time must have the same alignment as the global time information.

◆ AddWeeklyTour()

void EVFSM::AddWeeklyTour	(	unsigned long	carID,
		short	weekday,
		unsigned long	departure_ts_of_day,
		unsigned long	ts_duration,
		double	tour_length_km,
		bool	with_work
	)

static

This class method adds a home-centered car tour to the car with ID carID. All parameters that represent a time must have the same alignment as the global time information.

◆ get_battery()

const ComponentBS * EVFSM::get_battery ( ) const

inline

Returns a reference to the battery component of the EV.

◆ get_current_state()

EVState EVFSM::get_current_state ( ) const

inline

◆ get_currentDemand_kW() [1/2]

double EVFSM::get_currentDemand_kW ( ) const

inlinevirtual

Gets the current charging power in kW; Only valid after calling EVFSM::setDemandToProfileData() or EVFSM::setDemandToGivenValue()

Implements BaseComponentSemiFlexible.

◆ get_currentDemand_kW() [2/2]

virtual double BaseComponentSemiFlexible::get_currentDemand_kW ( ) const

virtual

Implements BaseComponentSemiFlexible.

◆ get_future_max_consumption_kWh()

const std::vector< double > * BaseComponentSemiFlexible::get_future_max_consumption_kWh ( ) const

inline

Returns the maximum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the maximum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per future time step - READ THE ATTENTION NOTICE

◆ get_future_max_power_kW()

const std::vector< double > * EVFSM::get_future_max_power_kW ( ) const

inline

Returns the maximum power of this EV per time step in the controller horizon. Attention: Returned object will be overwritten after calling EVFSM::setCarStateForTimeStep().

◆ get_future_min_consumption_kWh()

const std::vector< double > * BaseComponentSemiFlexible::get_future_min_consumption_kWh ( ) const

inline

Returns the minimum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the minimum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per future time step - READ THE ATTENTION NOTICE

◆ get_metrics_string_annual()

std::string * EVFSM::get_metrics_string_annual ( )

Returns some metrics as string (useful for the output). Header see EVFSM::MetricsStringHeaderAnnual. Call this function only if simulation run is finished!

◆ GetArrayOfInstances()

static const std::map< unsigned long, EVFSM * > & EVFSM::GetArrayOfInstances ( )

inlinestatic

Returns the map of all existing instances. The objects itself are mutable, but the map reference is const.

◆ GetNumberOfEVs()

static unsigned long EVFSM::GetNumberOfEVs ( )

inlinestatic

◆ preprocessTourInformation()

void EVFSM::preprocessTourInformation ( )

Transforms the list of weekly tours into a list of tours for the complete simulation time span and computes upper and lower cumlulative energy required (i.e., fill variables BaseComponentSemiFlexible::future_maxE_storage and BaseComponentSemiFlexible::future_minE_storage from upper class). THis method MUST be called before the main simulation run starts, but it MUST be called after EVFSM::add_weekly_tour() is called for the last time, i.e., all tours have been added.

< Reference to the current weekly tour

◆ resetInternalState()

void EVFSM::resetInternalState ( )

virtual

Resets the internal state.

Implements BaseComponent.

◆ resetWeeklyCounter()

void EVFSM::resetWeeklyCounter ( )

inlinevirtual

Do nothing. The EV has no weekly metrics.

Implements BaseComponent.

◆ set_horizon_in_ts() [1/2]

void BaseComponentSemiFlexible::set_horizon_in_ts ( unsigned int new_horizon )

Sets another horizon for the number of time steps returned by BaseComponentSemiFlexible::get_future_min_max_demand()

◆ set_horizon_in_ts() [2/2]

void EVFSM::set_horizon_in_ts ( unsigned int new_horizon )

◆ setCarStateForTimeStep()

void EVFSM::setCarStateForTimeStep ( unsigned long ts )

Sets the car state for a new time step 'ts'. This method must be called with strictly consecutive values of parameter 'ts'. It uses the precomputed vectors for internal processing.

◆ setDemandToGivenValue() [1/2]

bool EVFSM::setDemandToGivenValue ( double new_demand_kW )

virtual

Changes the (shiftable) demand of the component for the current time step. It must be called before the current demand and total consumption values are set correctly. If this function is called, BaseComponentSemiFlexible::setDemandToProfileData() must not be called anymore.

Parameters

new_demand_kW The new power for this time step in kW.

Returns: true if no error occured or false, if the upper or lower bound was violated

Implements BaseComponentSemiFlexible.

◆ setDemandToGivenValue() [2/2]

virtual bool BaseComponentSemiFlexible::setDemandToGivenValue ( double new_demand_kW )

virtual

Changes the (shiftable) demand of the component for the current time step. It must be called before the current demand and total consumption values are set correctly. If this function is called, BaseComponentSemiFlexible::setDemandToProfileData() must not be called anymore.

Parameters

new_demand_kW The new power for this time step in kW.

Returns: true if no error occured or false, if the upper or lower bound was violated

Implements BaseComponentSemiFlexible.

◆ setDemandToProfileData() [1/2]

void EVFSM::setDemandToProfileData ( unsigned long ts )

virtual

Sets the demand value to the value as given in the data. If this function is called, BaseComponentSemiFlexible::setDemandToGivenValues() must not be called anymore.

Implements BaseComponentSemiFlexible.

◆ setDemandToProfileData() [2/2]

virtual void BaseComponentSemiFlexible::setDemandToProfileData ( unsigned long ts )

virtual

Sets the demand value to the value as given in the data. If this function is called, BaseComponentSemiFlexible::setDemandToGivenValues() must not be called anymore.

Implements BaseComponentSemiFlexible.

◆ SetSeed()

void EVFSM::SetSeed ( unsigned int seed )

static

Sets the seed for the EVFSM-class random number generator.

◆ VacuumStaticVariables()

void EVFSM::VacuumStaticVariables ( )

static

Member Data Documentation

◆ MetricsStringHeaderAnnual

const std::string EVFSM::MetricsStringHeaderAnnual = "CarID,HomeControlUnitID,Driving distance [km],E used for driving [kWh],Home-charged E [kWh],Home-discharged E [kWh],n ts home-connected"

static

The header for the output string produced by EVFSM::get_metrics_string_annual()
