#include <components.h>

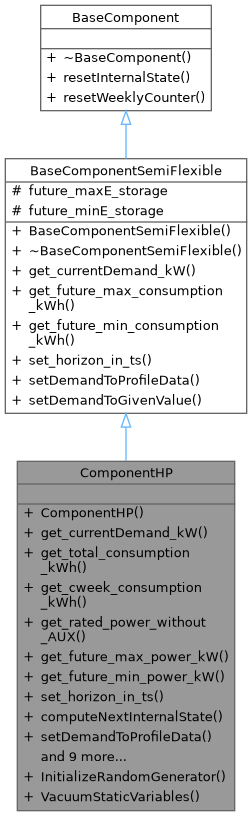

Inheritance diagram for ComponentHP:

Public Member Functions
	ComponentHP (const ControlUnit *connected_unit, float annual_econs_kWh)

double	get_currentDemand_kW () const

double	get_total_consumption_kWh () const

double	get_cweek_consumption_kWh () const

float	get_rated_power_without_AUX () const

const std::vector< double > *	get_future_max_power_kW () const

const std::vector< double > *	get_future_min_power_kW () const

void	set_horizon_in_ts (unsigned int new_horizon)

void	computeNextInternalState (unsigned long ts)

void	setDemandToProfileData (unsigned long ts)

bool	setDemandToGivenValue (double new_demand_kW)

void	resetWeeklyCounter ()
	Resets the internal, weekly counters.

void	resetInternalState ()
	Resets the internal simulation state (like counters), but retains the structural state like attached sub-components.

virtual double	get_currentDemand_kW () const=0

const std::vector< double > *	get_future_max_consumption_kWh () const

const std::vector< double > *	get_future_min_consumption_kWh () const

void	set_horizon_in_ts (unsigned int new_horizon)

virtual void	setDemandToProfileData (unsigned long ts)=0

virtual bool	setDemandToGivenValue (double new_demand_kW)=0

Public Member Functions inherited from BaseComponentSemiFlexible
	BaseComponentSemiFlexible ()

	~BaseComponentSemiFlexible ()

const std::vector< double > *	get_future_max_consumption_kWh () const

const std::vector< double > *	get_future_min_consumption_kWh () const

void	set_horizon_in_ts (unsigned int new_horizon)

Public Member Functions inherited from BaseComponent
virtual	~BaseComponent ()

Static Public Member Functions
static void	InitializeRandomGenerator ()

static void	VacuumStaticVariables ()

Additional Inherited Members
Protected Attributes inherited from BaseComponentSemiFlexible
std::vector< double >	future_maxE_storage

std::vector< double >	future_minE_storage

Constructor & Destructor Documentation

◆ ComponentHP()

ComponentHP::ComponentHP	(	const ControlUnit *	connected_unit,
		float	annual_econs_kWh
	)

Member Function Documentation

◆ computeNextInternalState()

void ComponentHP::computeNextInternalState ( unsigned long ts )

Computes the internal state for the first / next time step with a given timestep ID as parameter.

◆ get_currentDemand_kW() [1/2]

double ComponentHP::get_currentDemand_kW ( ) const

inlinevirtual

Implements BaseComponentSemiFlexible.

◆ get_currentDemand_kW() [2/2]

virtual double BaseComponentSemiFlexible::get_currentDemand_kW ( ) const

virtual

Implements BaseComponentSemiFlexible.

◆ get_cweek_consumption_kWh()

double ComponentHP::get_cweek_consumption_kWh ( ) const

inline

Returns the total consumption from the beginning of the current week up to the latest executed step in kWh.

◆ get_future_max_consumption_kWh()

const std::vector< double > * BaseComponentSemiFlexible::get_future_max_consumption_kWh ( ) const

inline

Returns the maximum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the maximum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per future time step - READ THE ATTENTION NOTICE

◆ get_future_max_power_kW()

const std::vector< double > * ComponentHP::get_future_max_power_kW ( ) const

inline

Returns the maximum power of this component for the next n time steps (given some flexibility). The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max power per future time step - READ THE ATTENTION NOTICE

◆ get_future_min_consumption_kWh()

const std::vector< double > * BaseComponentSemiFlexible::get_future_min_consumption_kWh ( ) const

inline

Returns the minimum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the minimum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max demand per future time step - READ THE ATTENTION NOTICE

◆ get_future_min_power_kW()

const std::vector< double > * ComponentHP::get_future_min_power_kW ( ) const

inline

Returns the minimum power of this component for the next n time steps (given some flexibility). The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns: : Returns a pointer to a vector storing min/max power per future time step - READ THE ATTENTION NOTICE

◆ get_rated_power_without_AUX()

float ComponentHP::get_rated_power_without_AUX ( ) const

inline

Returns the (simulated) rated power of the heat pump without the AUX heating.

◆ get_total_consumption_kWh()

double ComponentHP::get_total_consumption_kWh ( ) const

inline

Returns the total consumption from the beginning of the simulation up to the latest executed step in kWh.

◆ InitializeRandomGenerator()

void ComponentHP::InitializeRandomGenerator ( )

static

◆ resetInternalState()

void ComponentHP::resetInternalState ( )

virtual

Resets the internal simulation state (like counters), but retains the structural state like attached sub-components.

Implements BaseComponent.

◆ resetWeeklyCounter()

void ComponentHP::resetWeeklyCounter ( )

virtual

Resets the internal, weekly counters.

Implements BaseComponent.

◆ set_horizon_in_ts() [1/2]

void BaseComponentSemiFlexible::set_horizon_in_ts ( unsigned int new_horizon )

Sets another horizon for the number of time steps returned by BaseComponentSemiFlexible::get_future_min_max_demand()

◆ set_horizon_in_ts() [2/2]

void ComponentHP::set_horizon_in_ts ( unsigned int new_horizon )

◆ setDemandToGivenValue() [1/2]

bool ComponentHP::setDemandToGivenValue ( double new_demand_kW )

virtual

Changes the (shiftable) demand of the component for the current time step. It must be called before the current demand and total consumption values are set correctly. If this function is called, BaseComponentSemiFlexible::setDemandToProfileData() must not be called anymore.

Parameters

new_demand_kW The new power for this time step in kW.

Returns: true if no error occured or false, if the upper or lower bound was violated

Implements BaseComponentSemiFlexible.

◆ setDemandToGivenValue() [2/2]

virtual bool BaseComponentSemiFlexible::setDemandToGivenValue ( double new_demand_kW )

virtual

Changes the (shiftable) demand of the component for the current time step. It must be called before the current demand and total consumption values are set correctly. If this function is called, BaseComponentSemiFlexible::setDemandToProfileData() must not be called anymore.

Parameters

new_demand_kW The new power for this time step in kW.

Returns: true if no error occured or false, if the upper or lower bound was violated

Implements BaseComponentSemiFlexible.

◆ setDemandToProfileData() [1/2]

void ComponentHP::setDemandToProfileData ( unsigned long ts )

virtual

Sets the demand value to the value as given in the data. If this function is called, BaseComponentSemiFlexible::setDemandToGivenValues() must not be called anymore.

Implements BaseComponentSemiFlexible.

◆ setDemandToProfileData() [2/2]

virtual void BaseComponentSemiFlexible::setDemandToProfileData ( unsigned long ts )

virtual

Sets the demand value to the value as given in the data. If this function is called, BaseComponentSemiFlexible::setDemandToGivenValues() must not be called anymore.

Implements BaseComponentSemiFlexible.

◆ VacuumStaticVariables()

void ComponentHP::VacuumStaticVariables ( )

static

The documentation for this class was generated from the following files:
