BaseComponentSemiFlexible Class Reference

#include <components.h>

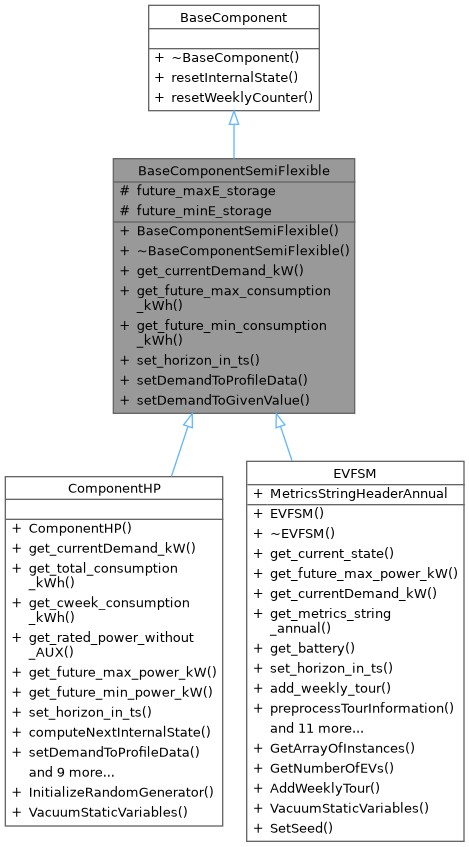

Inheritance diagram for BaseComponentSemiFlexible:

Public Member Functions
	BaseComponentSemiFlexible ()
	~BaseComponentSemiFlexible ()
virtual double	get_currentDemand_kW () const =0
const std::vector< double > *	get_future_max_consumption_kWh () const
const std::vector< double > *	get_future_min_consumption_kWh () const
void	set_horizon_in_ts (unsigned int new_horizon)
virtual void	setDemandToProfileData (unsigned long ts)=0
virtual bool	setDemandToGivenValue (double new_demand_kW)=0
Public Member Functions inherited from BaseComponent
virtual	~BaseComponent ()
virtual void	resetInternalState ()=0
	Resets the internal simulation state (like counters), but retains the structural state like attached sub-components.
virtual void	resetWeeklyCounter ()=0
	Resets the internal, weekly counters.

Protected Attributes
std::vector< double >	future_maxE_storage
std::vector< double >	future_minE_storage

Detailed Description

An abstract class acting as super-class for all components that can be controlled, but still have to fulfil a task. An example would be a heat pump or an individual EV. Both offer flexibility to some extend, but their main purpose is to generate heat or to drive. Thus their control is semi-flexible, as the main purpose still has to be fulfilled.

Instead, a battery storage is a fully-flexible controlable element, as it has no other task to fulfil.

Constructor & Destructor Documentation

BaseComponentSemiFlexible()

BaseComponentSemiFlexible::BaseComponentSemiFlexible

(

)

~BaseComponentSemiFlexible()

BaseComponentSemiFlexible::~BaseComponentSemiFlexible

(

)

Member Function Documentation

get_currentDemand_kW()

virtual double BaseComponentSemiFlexible::get_currentDemand_kW ( ) const

pure virtual

Implemented in ComponentHP, EVFSM, ComponentHP, and EVFSM.

get_future_max_consumption_kWh()

const std::vector< double > * BaseComponentSemiFlexible::get_future_max_consumption_kWh ( ) const

inline

Returns the maximum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the maximum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns

: Returns a pointer to a vector storing min/max demand per future time step - READ THE ATTENTION NOTICE

get_future_min_consumption_kWh()

const std::vector< double > * BaseComponentSemiFlexible::get_future_min_consumption_kWh ( ) const

inline

Returns the minimum electricity consumption of a component for the next n time steps (given some flexibility). This means that the value at position 0 returns the minimum cummulated consumption AT THE END of the current time step. This method assumes to start in the current time step, i.e. the consumption up to the current time step is considered to be 0. The length of the resulting vector is set using BaseComponentSemiFlexible::set_horizon_in_ts(). Attention: The object the returned pointer referes to is overwritten on subsequent calls!

Returns

: Returns a pointer to a vector storing min/max demand per future time step - READ THE ATTENTION NOTICE

set_horizon_in_ts()

void BaseComponentSemiFlexible::set_horizon_in_ts

(

unsigned int

new_horizon

)

Sets another horizon for the number of time steps returned by BaseComponentSemiFlexible::get_future_min_max_demand()

setDemandToGivenValue()

virtual bool BaseComponentSemiFlexible::setDemandToGivenValue ( double  new_demand_kW )

pure virtual

Changes the (shiftable) demand of the component for the current time step. It must be called before the current demand and total consumption values are set correctly. If this function is called, BaseComponentSemiFlexible::setDemandToProfileData() must not be called anymore.

Parameters

new_demand_kW

The new power for this time step in kW.

Returns

true if no error occured or false, if the upper or lower bound was violated

Implemented in ComponentHP, EVFSM, ComponentHP, and EVFSM.

setDemandToProfileData()

virtual void BaseComponentSemiFlexible::setDemandToProfileData ( unsigned long  ts )

pure virtual

Sets the demand value to the value as given in the data. If this function is called, BaseComponentSemiFlexible::setDemandToGivenValues() must not be called anymore.

Implemented in ComponentHP, EVFSM, ComponentHP, and EVFSM.

Member Data Documentation

future_maxE_storage

std::vector<double> BaseComponentSemiFlexible::future_maxE_storage

protected

Internal storage of an object that is outputted by BaseComponentSemiFlexible::get_future_max_consumption(), only required that we do not need to reserve / allocate a new vector with every call of BaseComponentSemiFlexible::get_future_max_consumption()

future_minE_storage

std::vector<double> BaseComponentSemiFlexible::future_minE_storage

protected

Internal storage of an object that is outputted by BaseComponentSemiFlexible::get_future_min_consumption(), only required that we do not need to reserve / allocate a new vector with every call of BaseComponentSemiFlexible::get_future_min_consumption()

---

The documentation for this class was generated from the following files:

• components.h
• components.cpp
